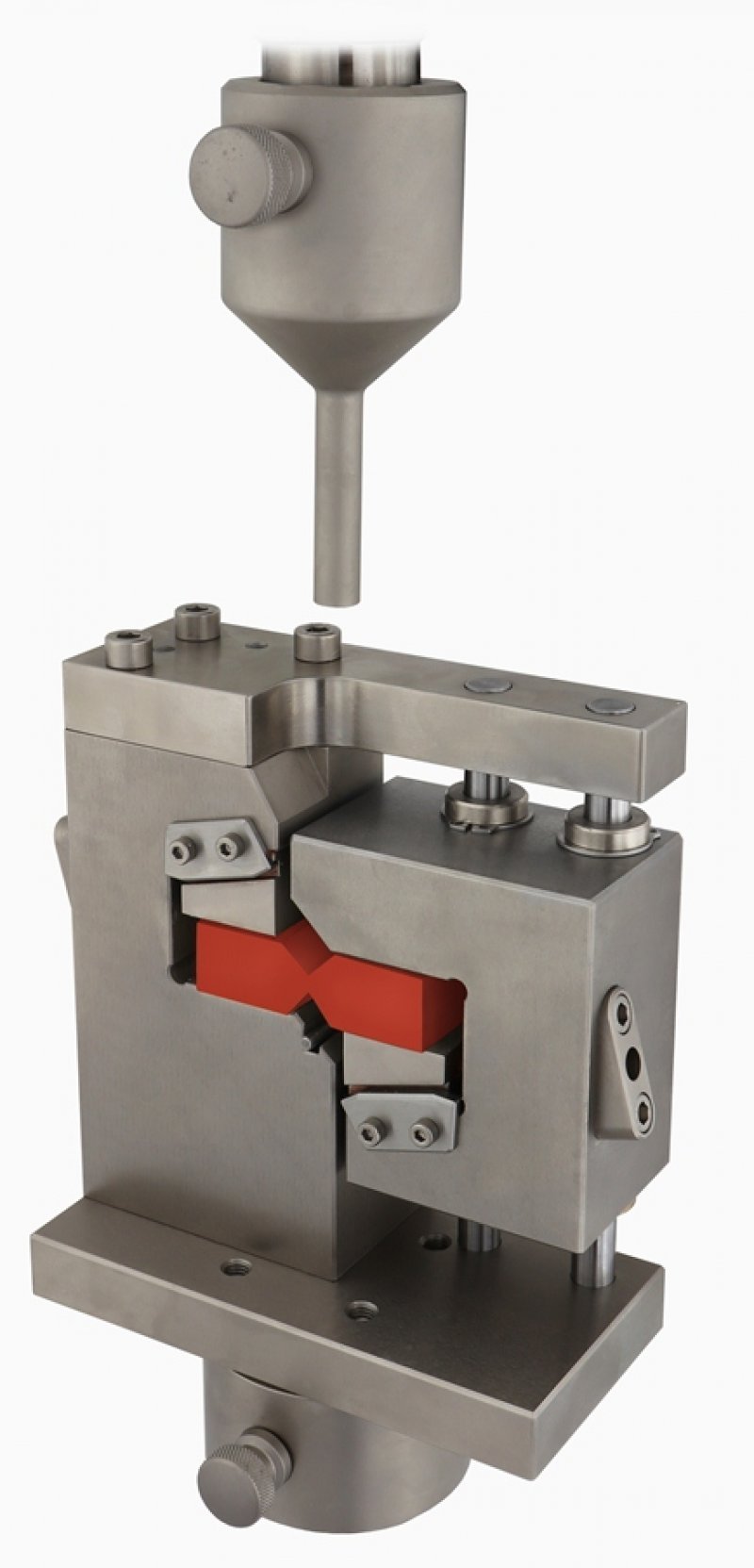

ASTM D5379 V-Notched Shear Test Fixture for Composite Materials

ASTM D5379 V-Notched Shear Test Fixture for Composite Materials

ASTM D5379 V-Notched Shear Test Fixture for Composite Materials



ASTM D5379 Test Fixture is used for evaluating shear properties of composite materials by V-notched beam method.



The lower and upper parts of the fixture are connected to the lower and upper connection points of the test machine. A load is applied from the top of the fixture to the v-notch test specimen, which is placed in the middle of these two separate parts of the fixture. During testing, a strain gauge is sometimes attached to the middle of the sample to measure strain deformation.



This test procedure, which measures the shear strength of composites, is similar to ASTM D7078 V-Notched Rail Shear Test Method of CFRP.



Contact us for more detailed information about ASTM D5379 Test Fixture and other test fixtures applied to composite materials.
